| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | ODM/PAC |
| Certification: | IEC62133, UN38.3, MSDS |
| Model Number: | 3.7V 151025 12mAh |
| Minimum Order Quantity: | 3000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plastic pallet, standard export carton |
| Delivery Time: | 15-20 days for samples, 25-35 days for mass production |
| Payment Terms: | T/T |
| Supply Ability: | 50,000pcs/day |
| Type: | Lithium Polymer | Cell Model: | 151025 |
|---|---|---|---|
| Nominal Voltage: | 3.7V | Nominal Capacity: | 12mAh |
| Items: | 151025 12mAh Special Shape Curved Rechargeable Lithium Battery | Application: | Intelligent Ring |
| Keywords: | Lipo Battery, Lithium Polymer Battery, Lithium Battery, Special Shape Lithium Battery, Curved Battery | Protection: | Built-in PCM |
| Standard Discharge Current: | 0.5C, 6mAh | Standard Charge Current: | 0.5C, 6mAh |
| Certificate: | IEC62133, UN38.3, MSDS | Cycle: | 500 Times |
| Warranty: | 1 Year | ||
| Highlight: | ultra thin lithium polymer battery,curved lithium polymer battery |
||

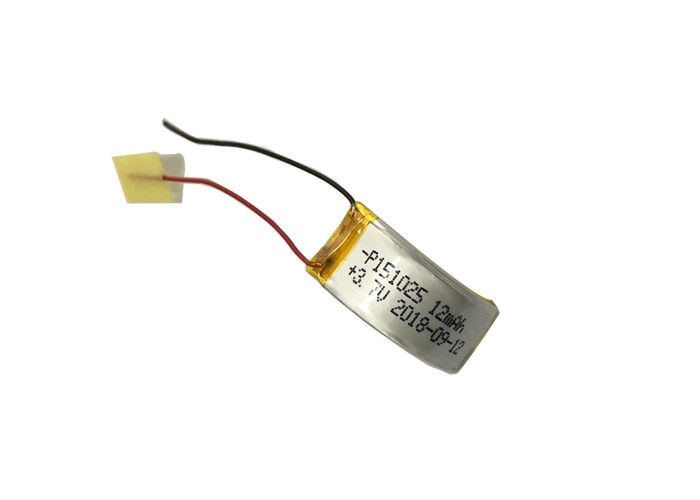

3.7V 151025 12mAh Special Shape Curved Rechargeable Lithium Battery for Intelligent Ring
Special Shape Curved Rechargeable Lithium Battery, widely use in wearable product like Intelligent Ring.
We have more than 1000 models for your choosing. And can also produce customized cells according to your requirement.
Features of Special Shape Curved Rechargeable Lithium Battery
Long cycle life
After 1000 cycles, the capacity maintained over 80%.
Wide operating temperature
Can be used at temperature -50 ℃~50 ℃ or 20 ℃~80 ℃.
Ultra-thin
The thickness can be as thin as 0.4mm.
High energy density
Specific energy density up to 460Wh/L light weight.
Ultra-Safe
Meet the requirements of ROHS, CE, UL, UN38. 3, MSDS and other certification.
Fast charge ability
Support 3C quick charge, maximum C-rate can reach 40C.
|
No.
|
Item
|
General Parameter
|
Remark
|
|
1.1
|
Description
|
Ultra Small Curved Battery 12mAh for wearable devices
|
Prismatic soft package
|
|
1.2
|
Cell Model
|
151025-3.7V 12mAh
|
|
|
1.3
|
Typical Capacity
|
12mAh
|
|
|
1.4
|
Typical Voltage
|
3.7V
|
|
|
1.5
|
End of Charge Voltage
|
4.2V
|
|
|
1.6
|
Charge Current
|
0.2C
|
|
|
1.7
|
Charging time
|
5-6 Hours
|
|
|
1.8
|
End discharge Voltage
|
3.0V
|
|
|
1.9
|
Max continuous charge current
|
2C (20mA)
|
|
|
2
|
Maximum Continuous Discharging Current
|
2C (20mA)
|
|
|
2.1
|
Over-discharge Voltage Protection cell
|
3.0V
|
|
|
2.2
|
Over-Current Discharge Protection
|
1A
|
|
|
2.3
|
Short circuit protection
|
With protection
|
|
|
2.4
|
Dimension
|
1.5*10*25mm
|
|
|
2.5
|
Weight
|
3gs
|
|
|
2.6
|
Operation Temperature Range
|
Charge 0~45 C, Discharge -20~60 C
|
Curved Battery List
| Model No. | Voltage (V) | C-rate | Capacity (mAh) | IR (mΩ) | Weight (g) | Type |
|---|---|---|---|---|---|---|
| PAC2524038-T1A | 4.35 | 10C | 185 | ≤80 | 4.1±0.5 | curved battery |
| PAC3024038-E1A | 4.35 | 8C | 250 | ≤70 | 5.3±0.5 | curved battery |
| PAC3020035-11A | 4.35 | 1C | 200 | ≤75 | 3.9±0.5 | curved battery |
| PAC4024025-13A | 4.35 | 1C | 225 | ≤100 | 4.1±0.5 | curved battery |
Special Shape Curved Rechargeable Lithium Battery Application
PAC produces high-performance curved batteries for Smartwatches, wristband, medical equipment, communication, smart rings, smart glasses, WIFI audio, wearable multi-touch projectors, charging boots, workout clothes, navigation shoes, i-watches, sports bracelets, etc.
Our R&D team works closely with clients to provide the best solution for their batteries.
